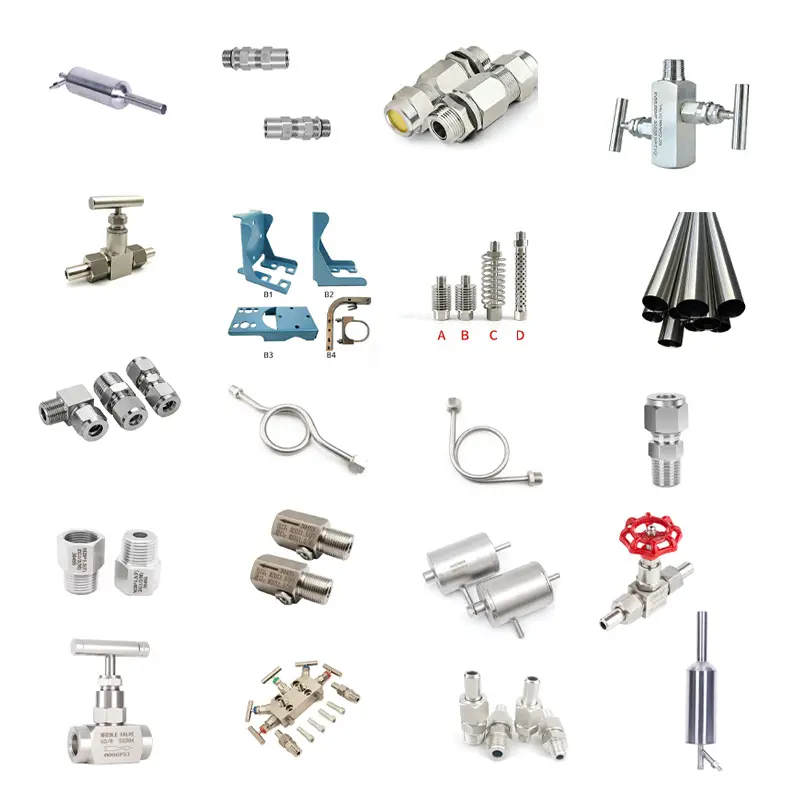

These accessories are designed to support safe installation, isolation, and long-term operation of pressure transmitters and diaphragm seal pressure transmitters.
1. Mounting bracket — used for fixing the transmitter.
2. Fittings — matched to installation requirements according to thread specifications (e.g. G1/2, NPT1/2, etc.).
3. Impulse tube — connects the process pipeline to the transmitter.

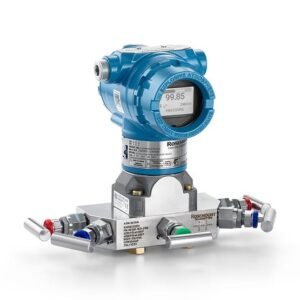

4. Valve manifold (shut-off valve, two-valve, three-valve, or five-valve manifold, etc.) — used for calibration, venting, and isolating process pressure.
5. Sealing gasket — used for flange sealing.
6. Stainless steel cable gland — commonly used in explosion-proof applications to ensure safe and reliable electrical connections.
7. Heat sink — used for high-temperature media, allowing the medium to cool down to normal temperature before entering the transmitter.
8. Damper — used to reduce pressure pulsations and vibrations of the medium, commonly installed on transmitters located after pumps.
9. Condensate pot — used in steam or high-temperature gas measurement systems to prevent high-temperature gas from directly contacting the transmitter.
10.Anti-clog sampling device — used to prevent particles, sediment, or high-viscosity media in the pipeline from clogging the sensor.

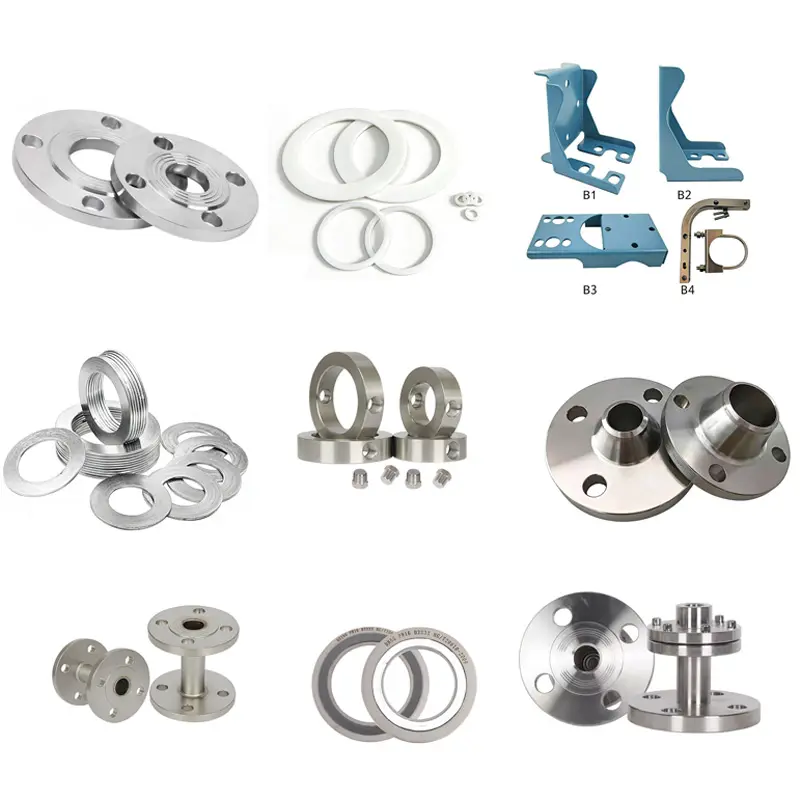

1. Mounting bracket — used to secure the transmitter or diaphragm assembly, ensuring stable installation.
2. Matching flange — used together with the diaphragm seal flange to connect the pipeline.
3. Fasteners — bolts, nuts, etc., used to secure flanges and brackets.
4. Isolation gasket — placed between flanges to ensure sealing and prevent leakage.
5. Flush port — used to clean the diaphragm or pipeline, preventing clogging.
6. I-shaped flange — provides standardized connections, facilitating installation and replacement.
7. Flanged ball valve — used to isolate or control the flow of process media.
