Why Choose Custom Seals for Pressure & Level Applications?

Diaphragm seal pressure and differential pressure transmitters are typically customized products. By integrating standard transmitter bodies with customized diaphragm seal assemblies and applying complete vacuum evacuation, oil filling, temperature compensation, and calibration processes, measurement performance equivalent to factory-assembled diaphragm seal transmitters can be achieved, meeting the requirements of a wide range of industrial applications.

-70°C to +350°C Extreme Temperature
Custom Materials: 316L, Tantalum, Hastelloy, Gold-plated…
Compatible with All Transmitter Brands

What Is a Custom Diaphragm Seal Remote Transmitter?

When purchasing flange-mounted pressure transmitters or diaphragm seal differential pressure transmitters, have you ever noticed this phenomenon:

Why do most distributors often offer lower prices than the original manufacturer, along with significantly shorter delivery times?

This is not a coincidence, but a long-standing common practice in the pressure transmitter industry.

In actual inventory planning, almost all suppliers prioritize stocking threaded pressure or differential pressure transmitters, while rarely keeping flange-mounted or remote diaphragm seal types in advance. The reason is that parameters such as flange standards, diaphragm materials, filling fluids, and capillary lengths are highly customized. Stocking these configurations in advance not only incurs high costs but also carries substantial inventory risks.

When customers request flange-mounted pressure transmitters or diaphragm seal pressure transmitters measurement solutions, suppliers typically take an existing transmitter body and send it to a specialized diaphragm seal assembly manufacturer, where customization is carried out according to the specific process conditions. The complete process includes:

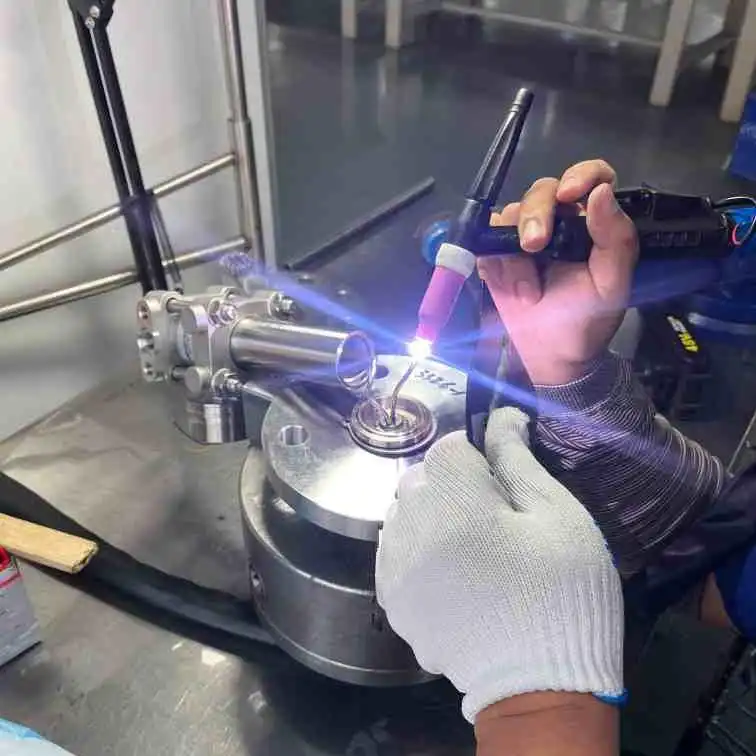

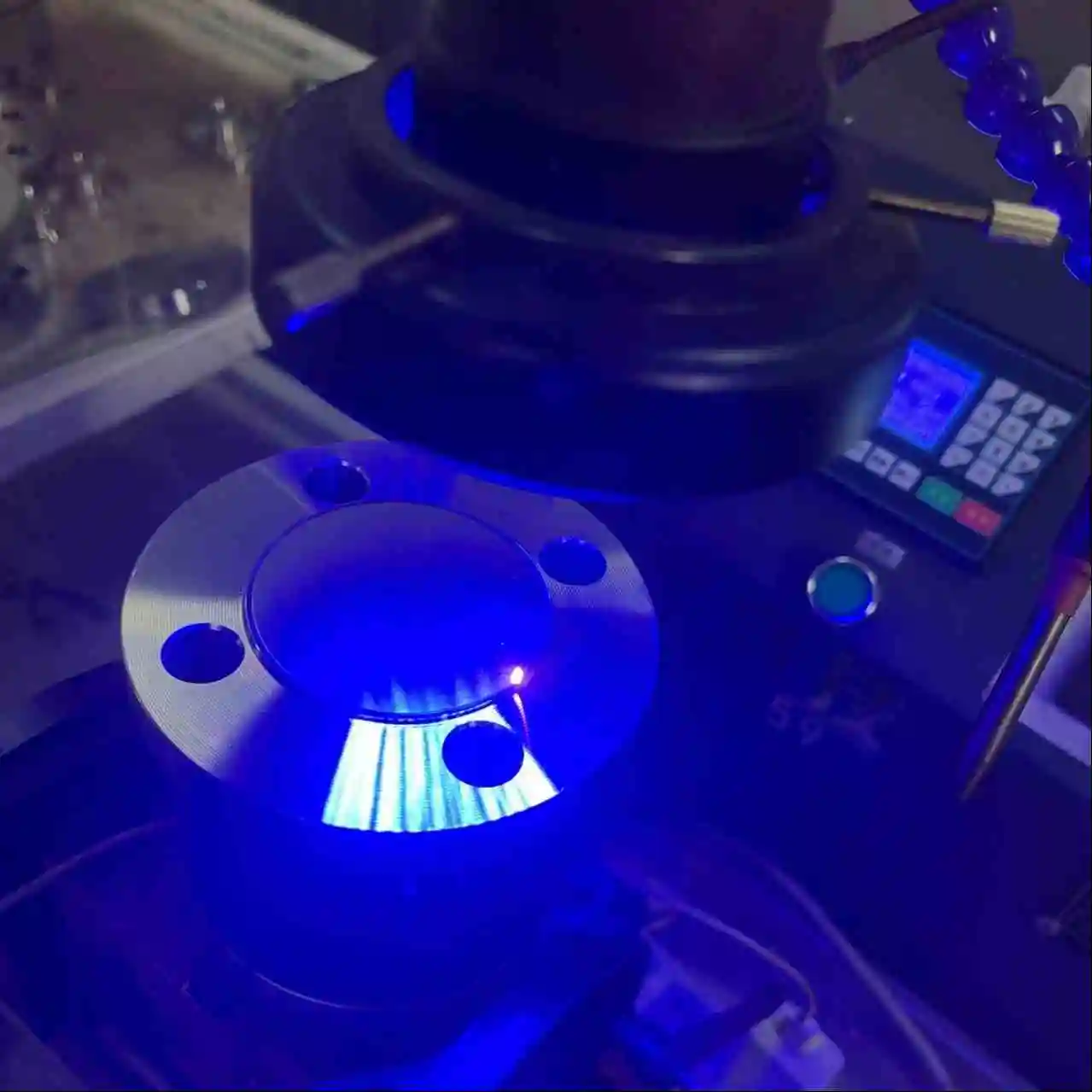

Design and assembly of the diaphragm seal and/or capillary system

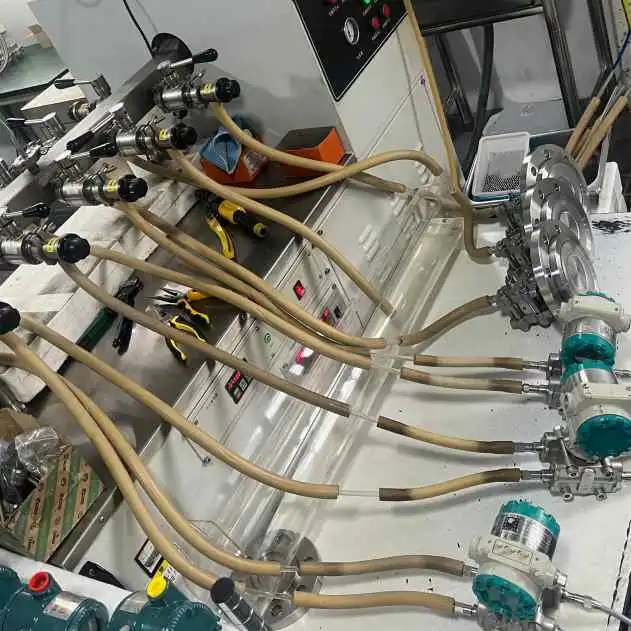

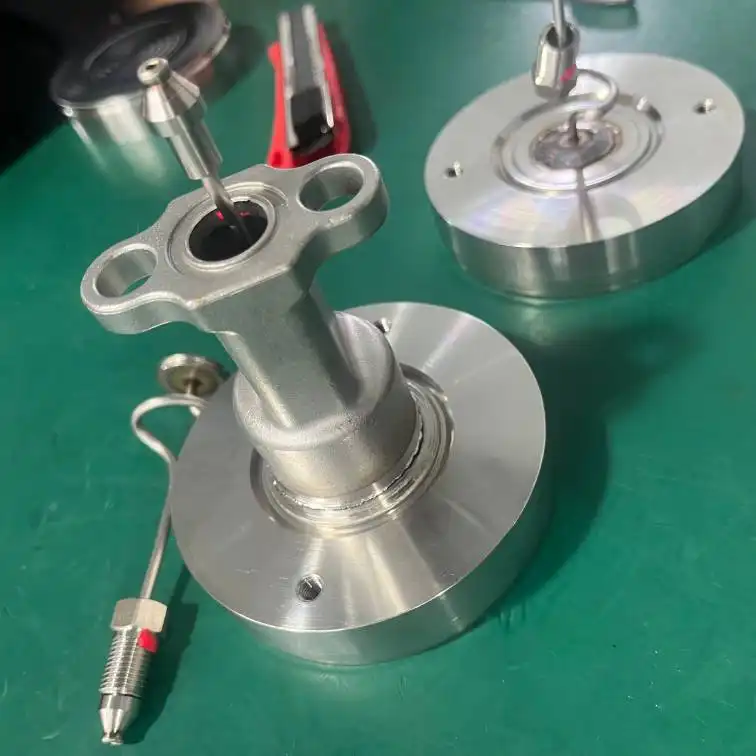

System evacuation and precision oil filling

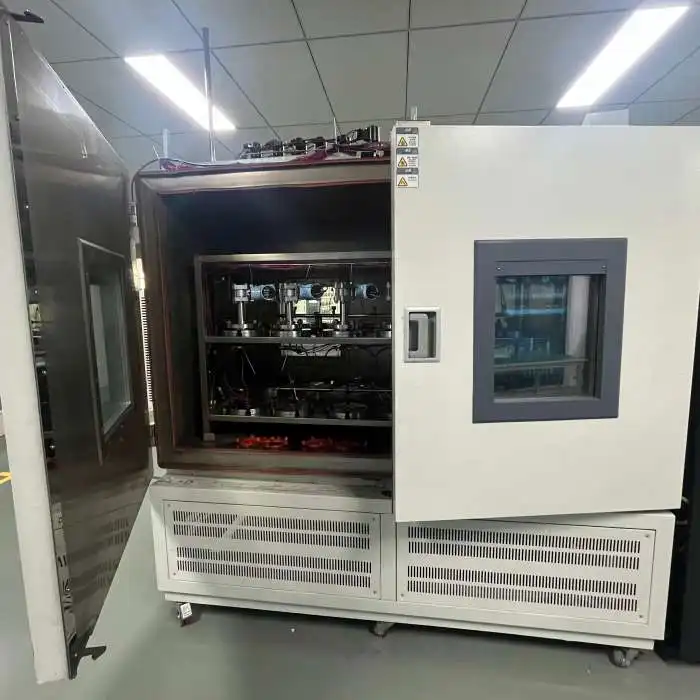

Temperature compensation and long-term stability treatment

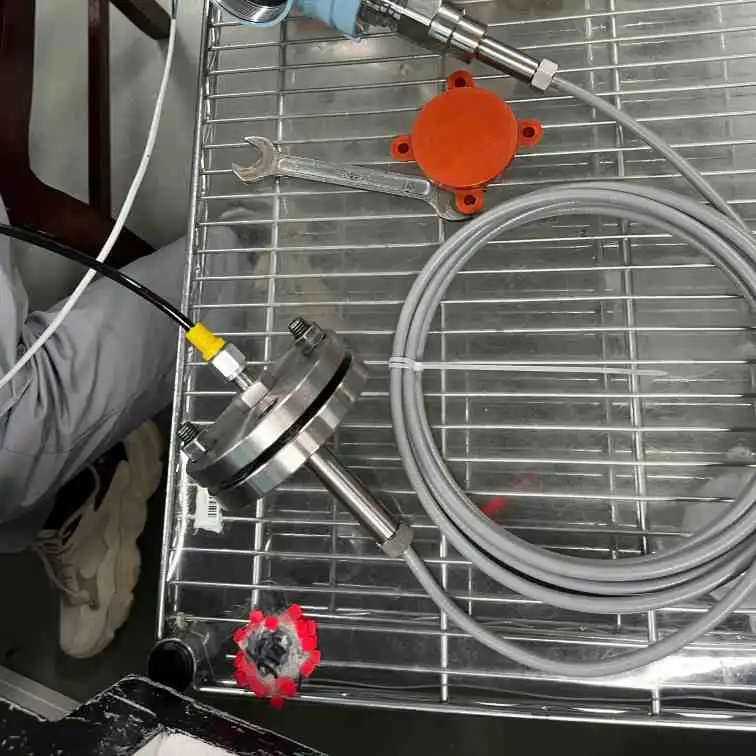

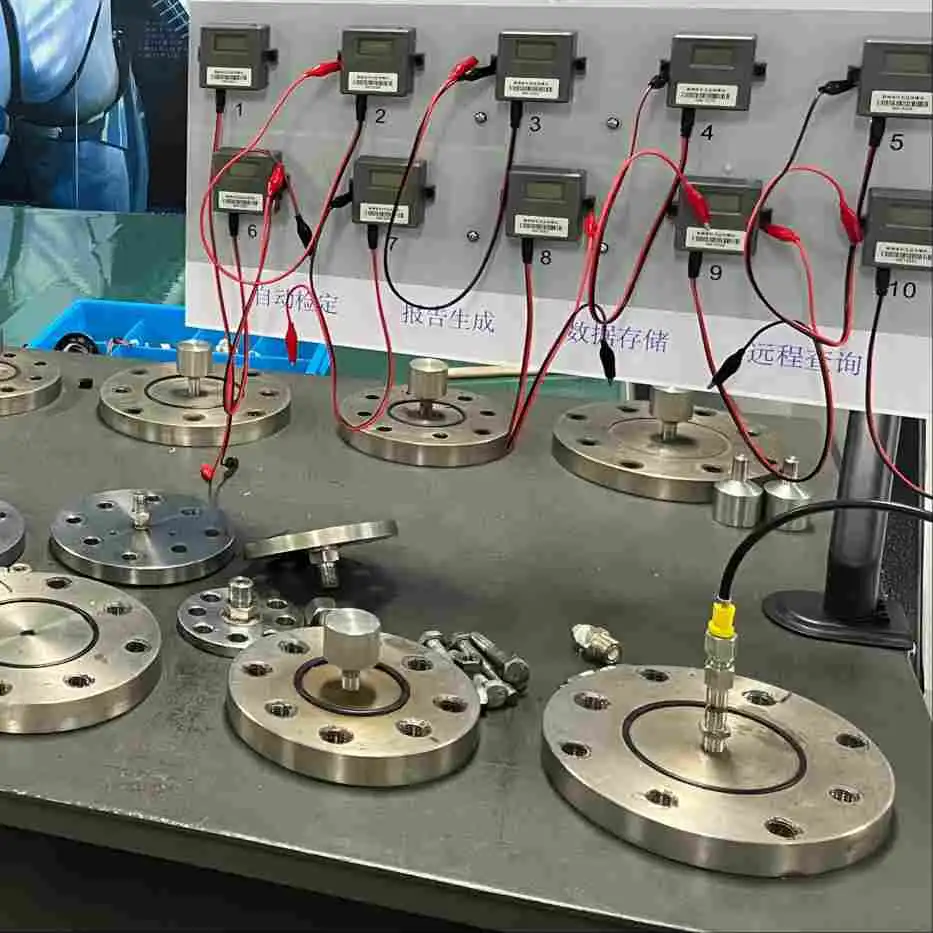

Factory calibration and performance verification

After these procedures, the transmitter can achieve measurement accuracy, response characteristics, and field applicability equivalent to original factory diaphragm seal products, and is widely used across various industrial applications.

This is exactly the service we provide: customized diaphragm seals system.

We specialize in delivering customized diaphragm seal components and flange-mounted remote seal solutions for pressure and differential pressure transmitters. While ensuring measurement performance and reliability, we help customers gain more flexible lead times, more competitive cost structures, and product configurations that are better aligned with real operating conditions.

Technical Specifications: Custom Diaphragm Seal System

Feature	Specification
Measurement Types	Pressure, Differential Pressure, Liquid Level, Vacuum
Accuracy	±0.075% of span (Standard); ±0.1% / ±0.05% (Optional)
Process Temperature	-70°C to +350°C (Ultra-cryogenic to high-temp steam)
Diaphragm Materials	316L, Hastelloy C-276, Tantalum, Titanium, Gold-plated, PTFE-coated, Diamond-like Coating (DLC)
Capillary Length	0m to 15.0m (From direct-mount to long-distance remote)
Fill Fluids	Silicone Oil, Low-temp Silicone, High-temp Silicone, Inert Liquid (Halocarbon)
Flange Size	DN10 to DN150 (1/2" to 6")
Process Connection	Flange (ANSI/ASME, DIN, JIS), Threaded, or Sanitary (Tri-clamp)
Flange Rating	Class 150# to 2500# / PN10 to PN400
Flange Material	304, 316, 2205 Duplex, Hastelloy C-276, PTFE Lined/Coated
Technical Note:	Consistent with all original factory-manufactured brands, our custom diaphragm seal systems involve secondary pressure transmission. This inherently introduces a minor physics-based attenuation in measurement accuracy and response time compared to standard direct-mount threaded transmitters. While our high-vacuum filling process minimizes this effect, these slight variances—especially in micro-pressure applications—are a physical characteristic shared by all remote seal technologies, regardless of the brand.

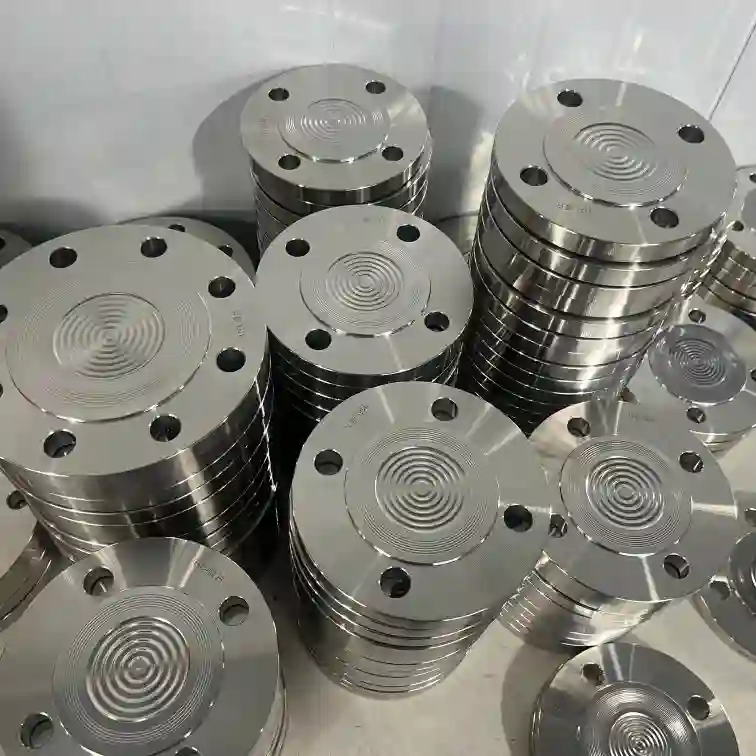

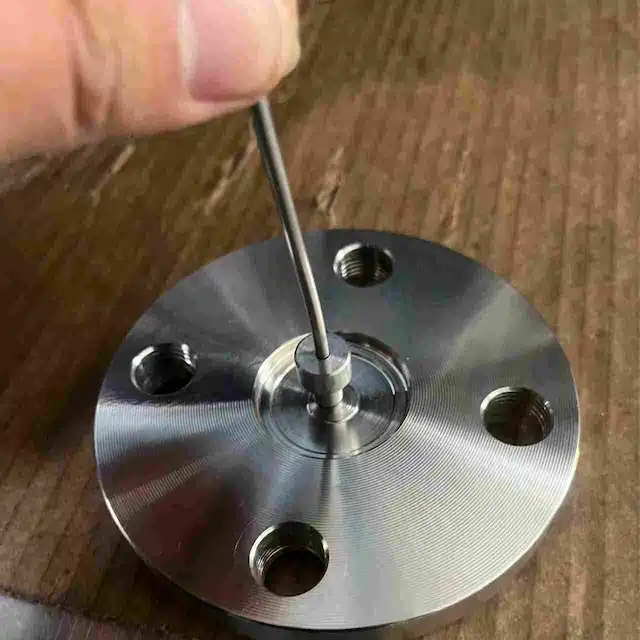

Our In-House Diaphragm Seal Manufacturing Process

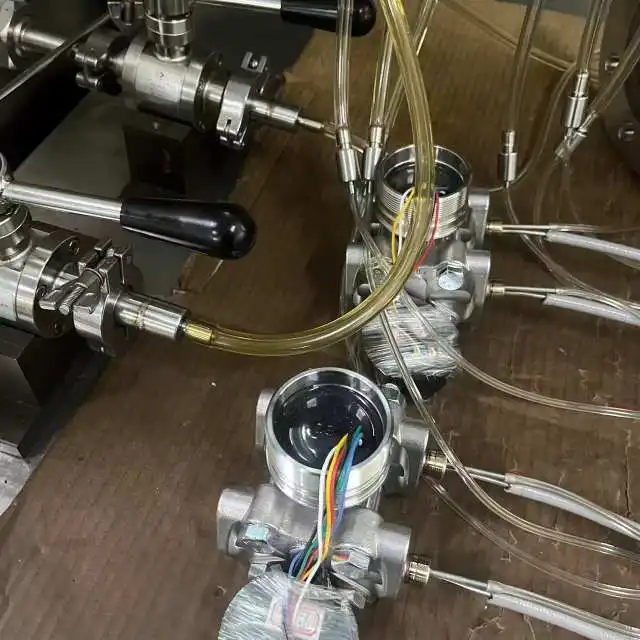

We ensure the highest vacuum filling standards for every custom diaphragm seal project

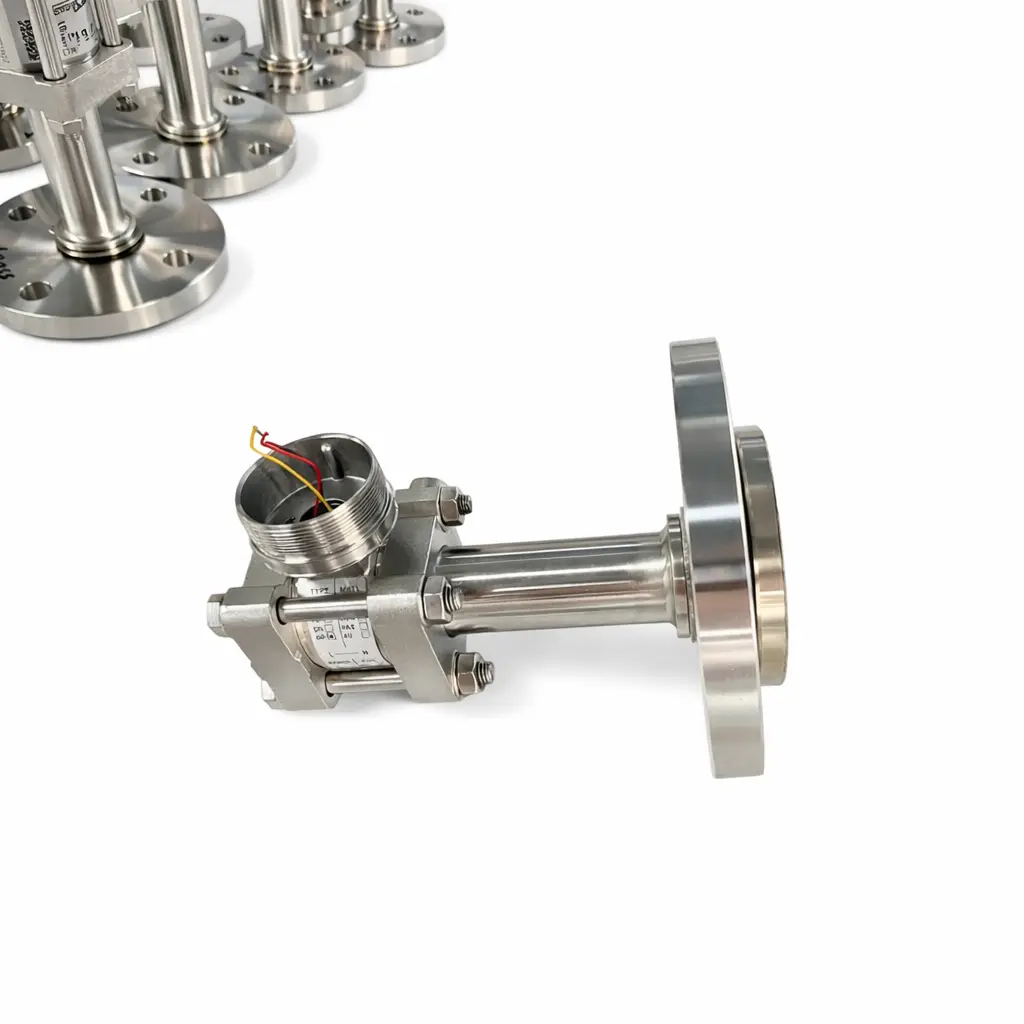

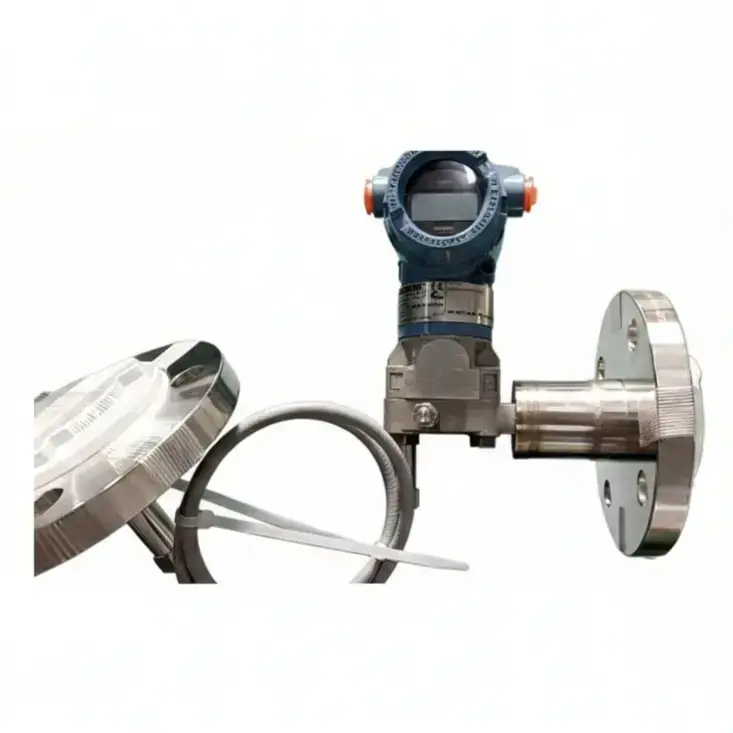

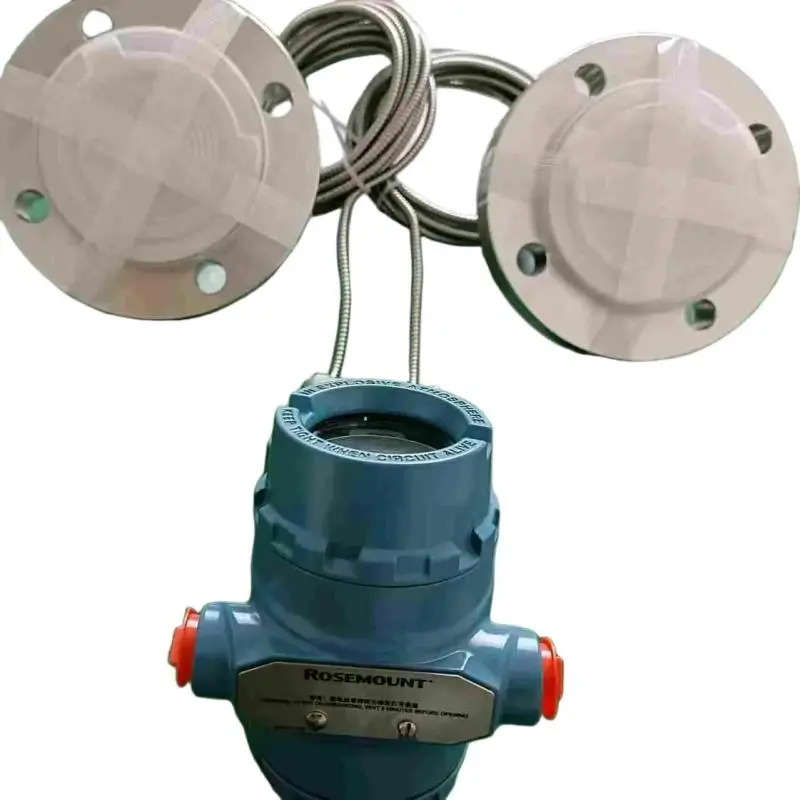

5 Custom Diaphragm Seal Solutions for Pressure & Level Transmitters

Custom-built diaphragm seal transmitter configurations for pressure and differential pressure measurement applications.

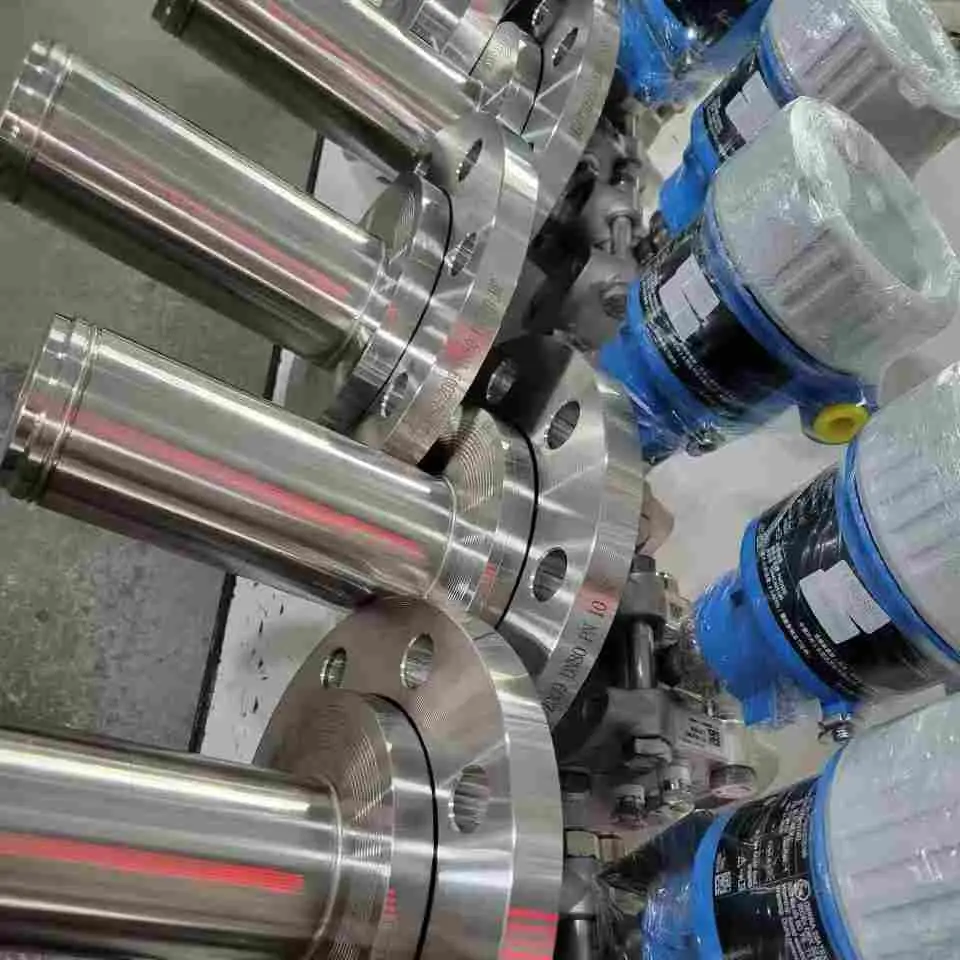

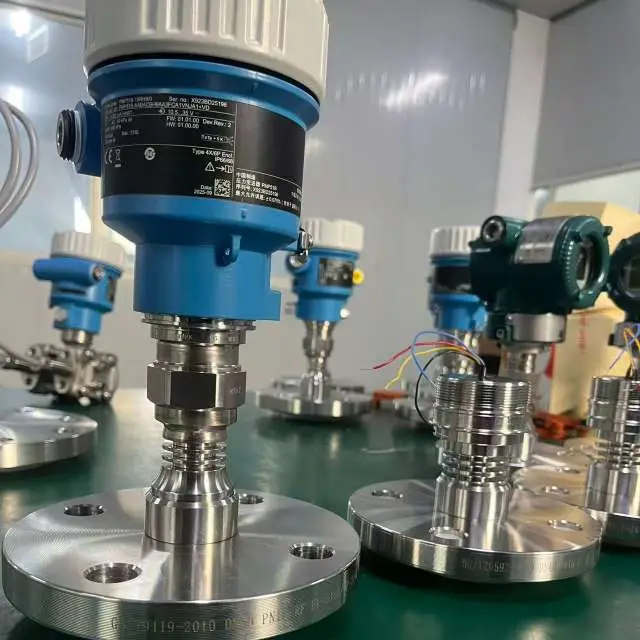

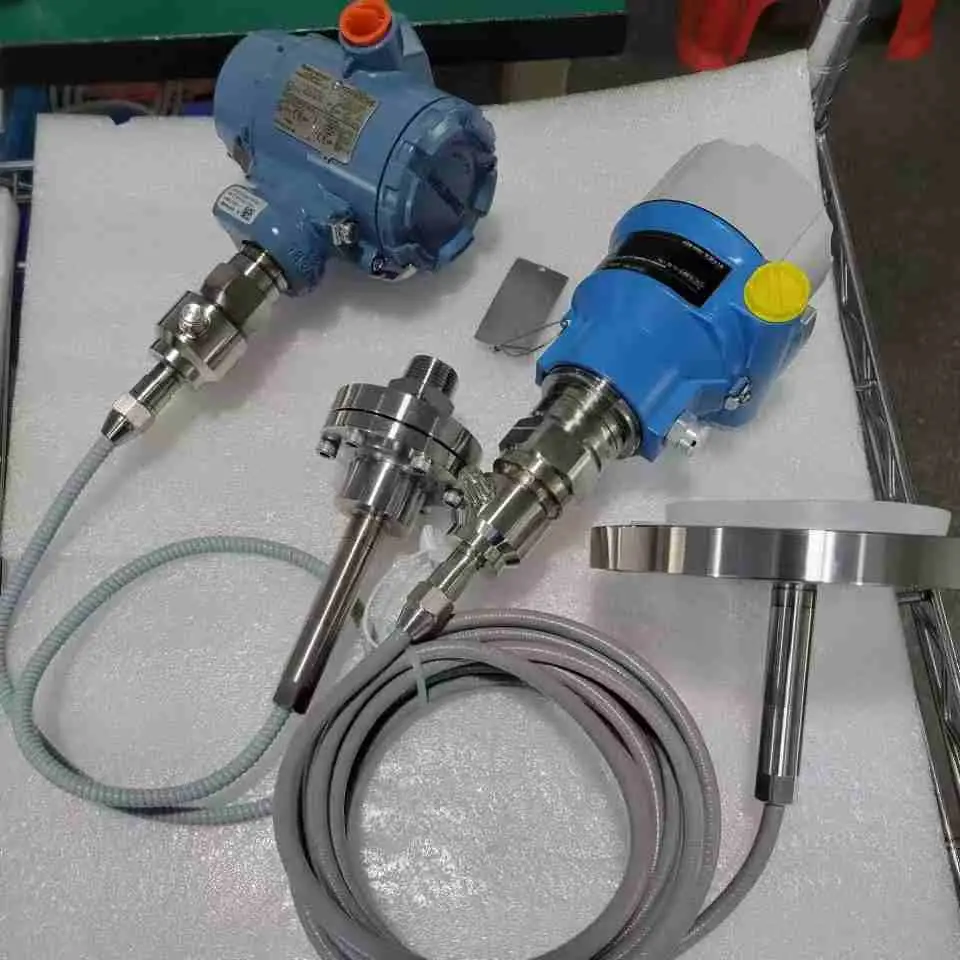

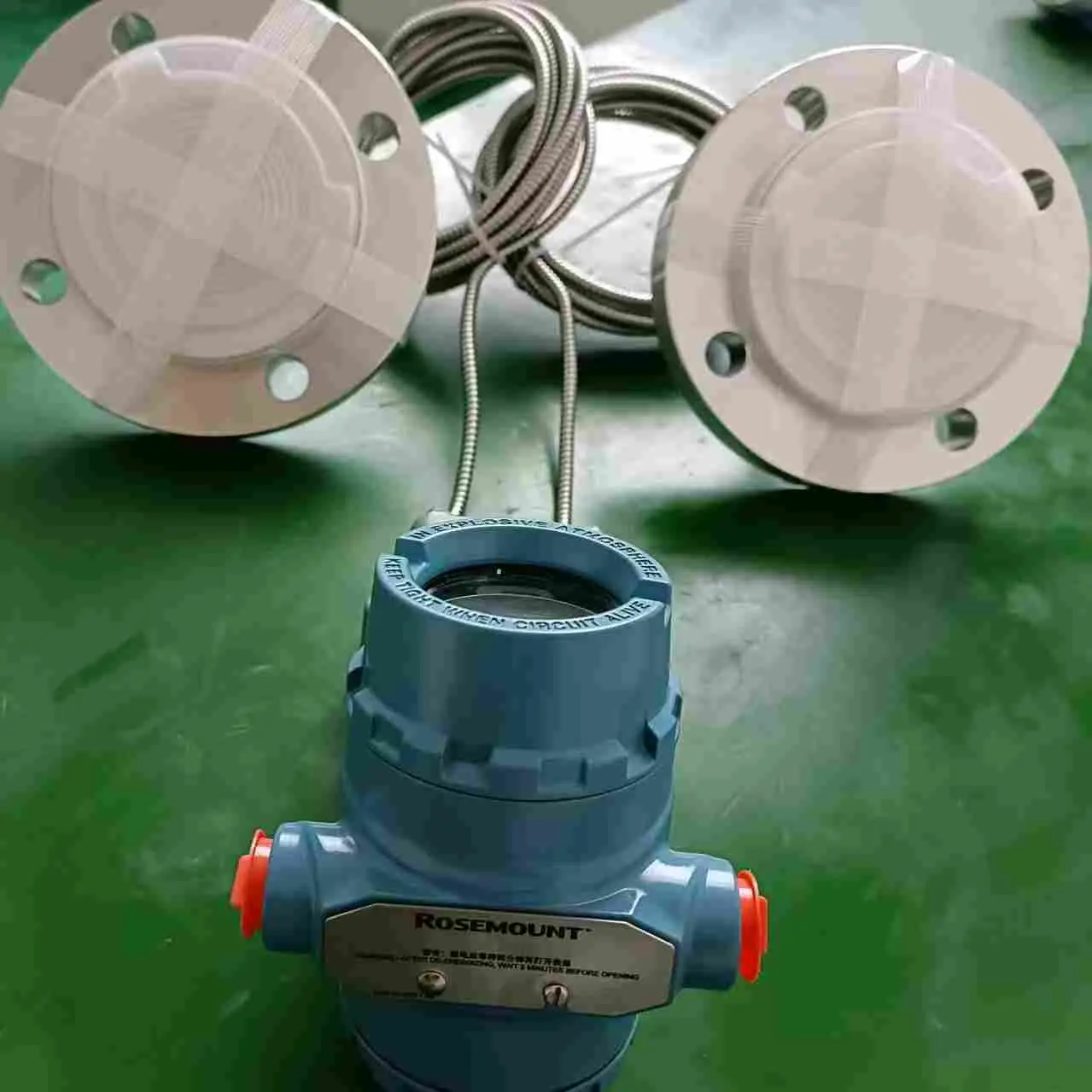

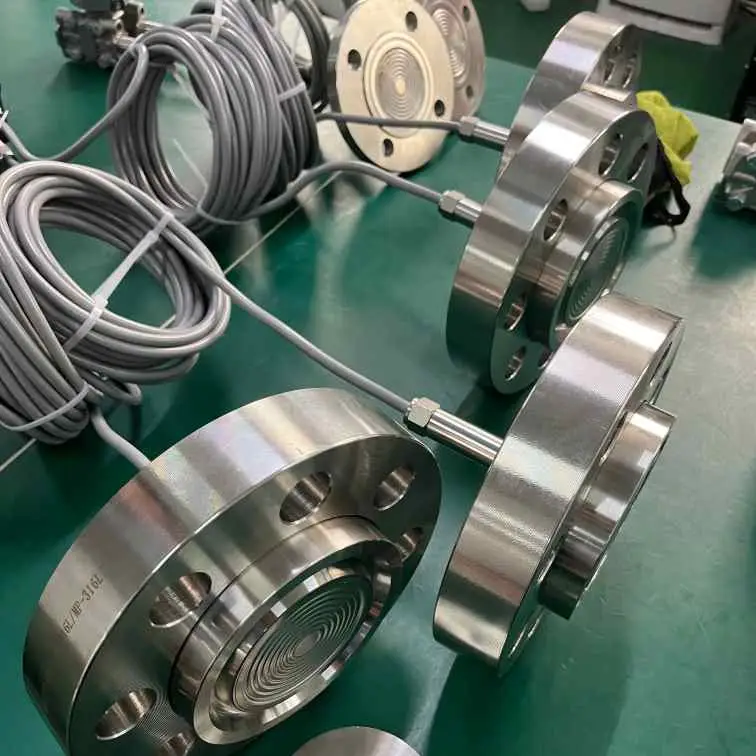

Recent Project Showcases

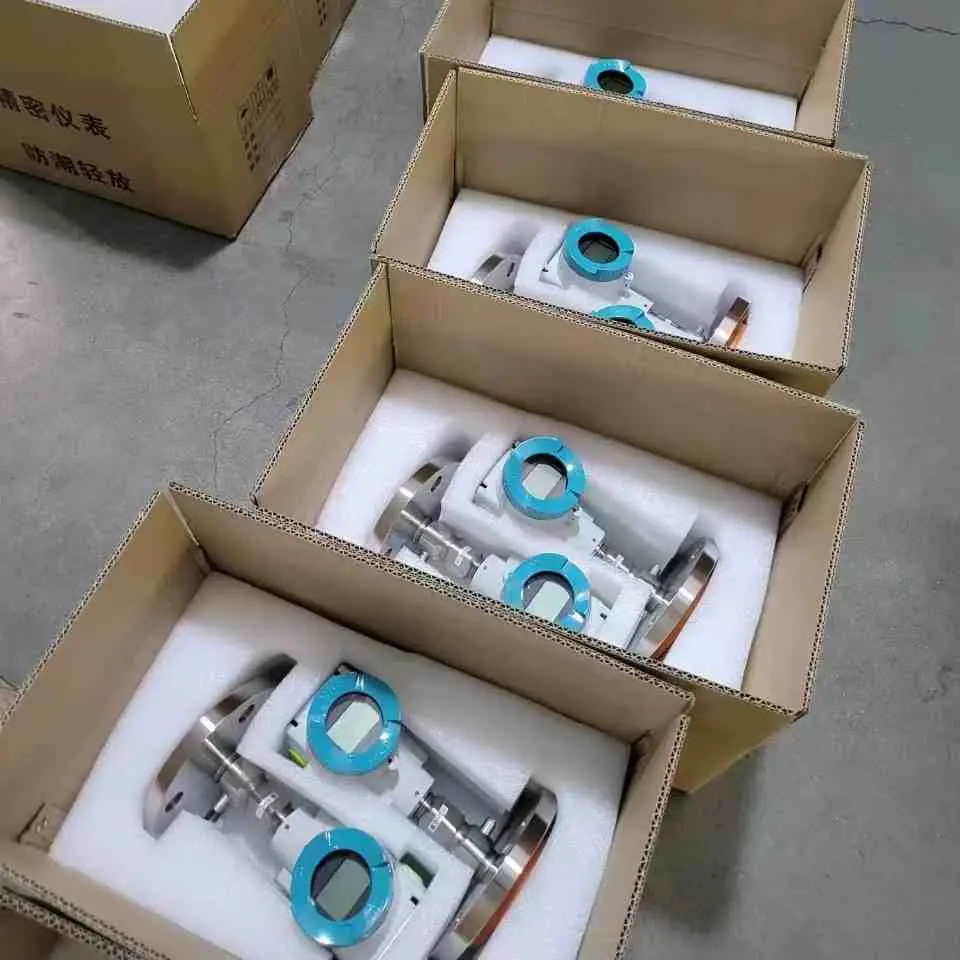

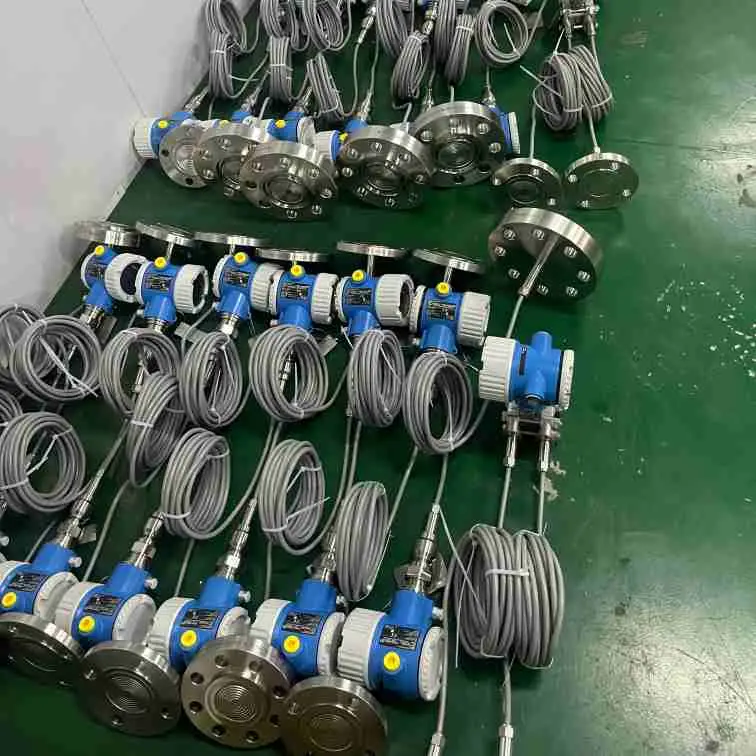

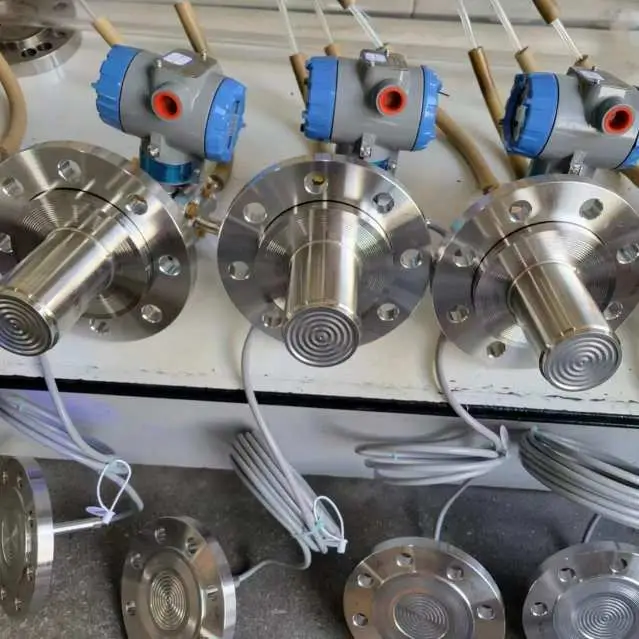

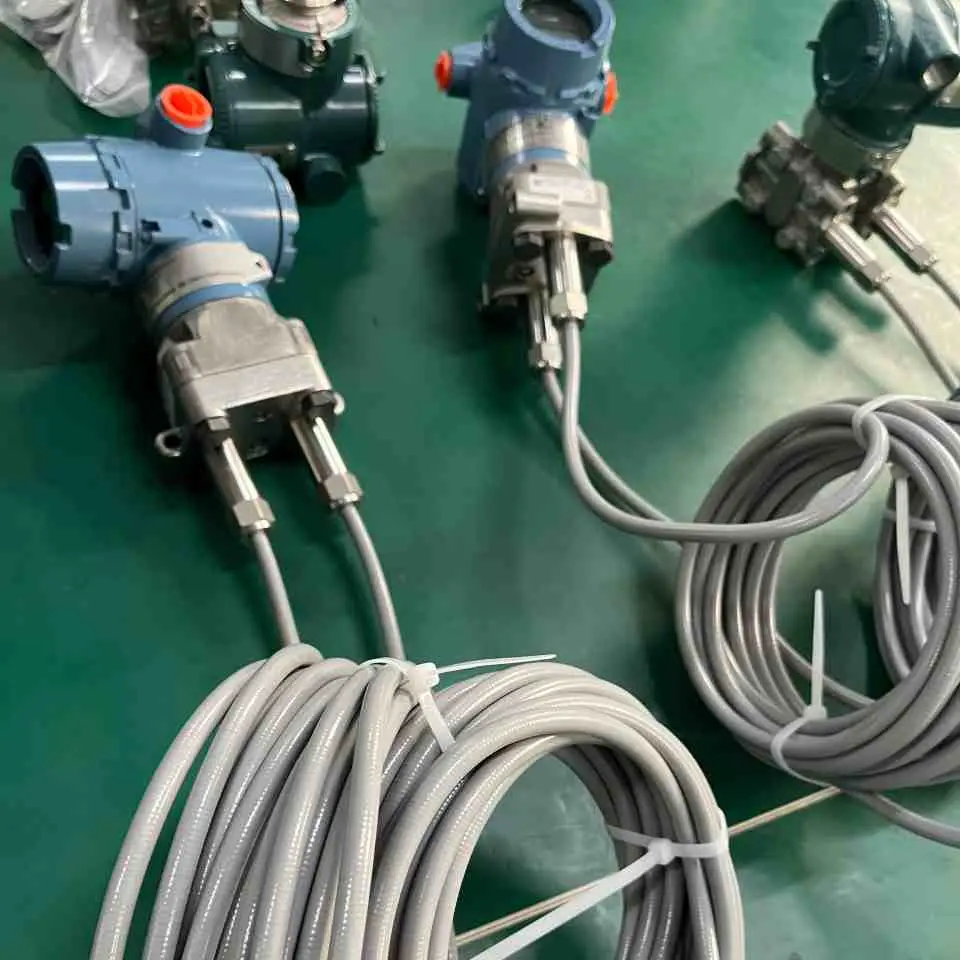

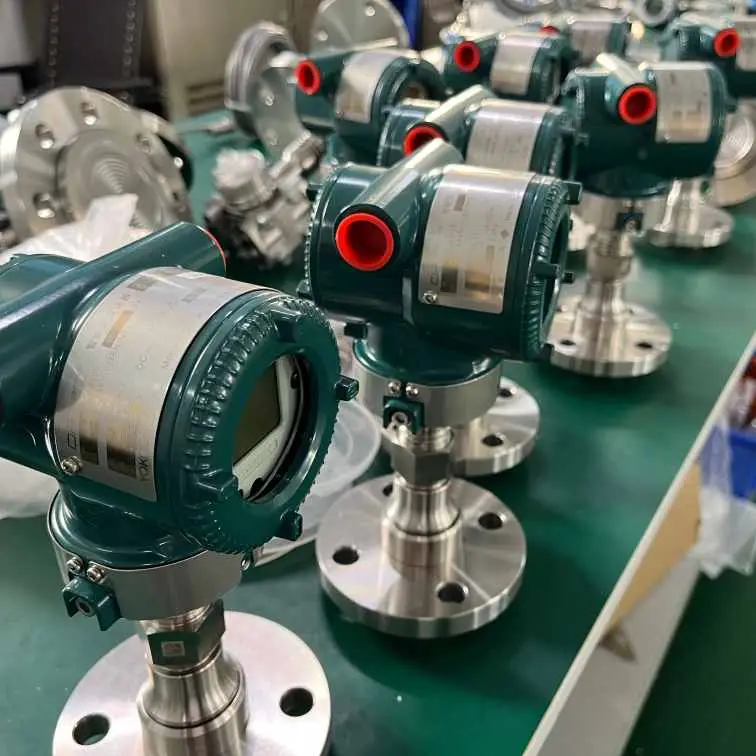

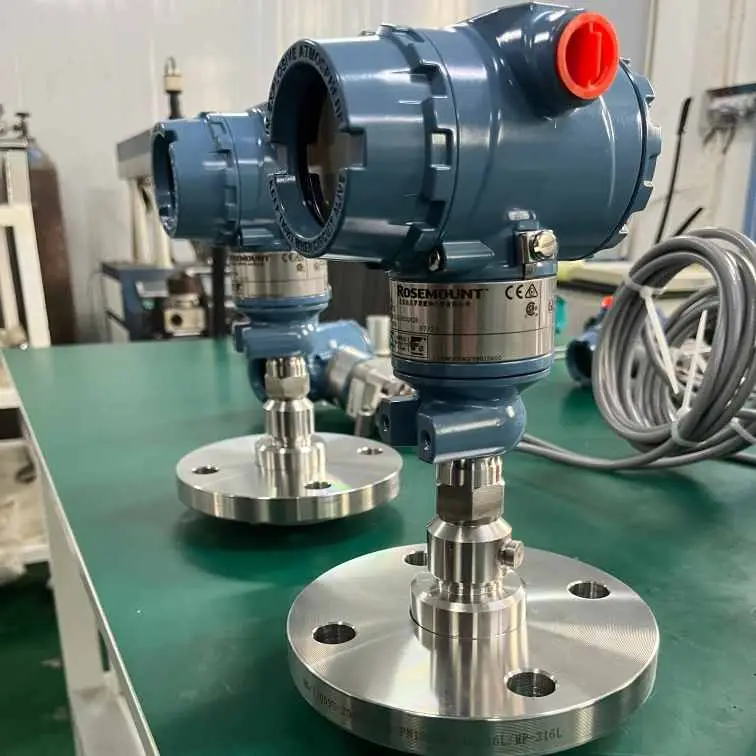

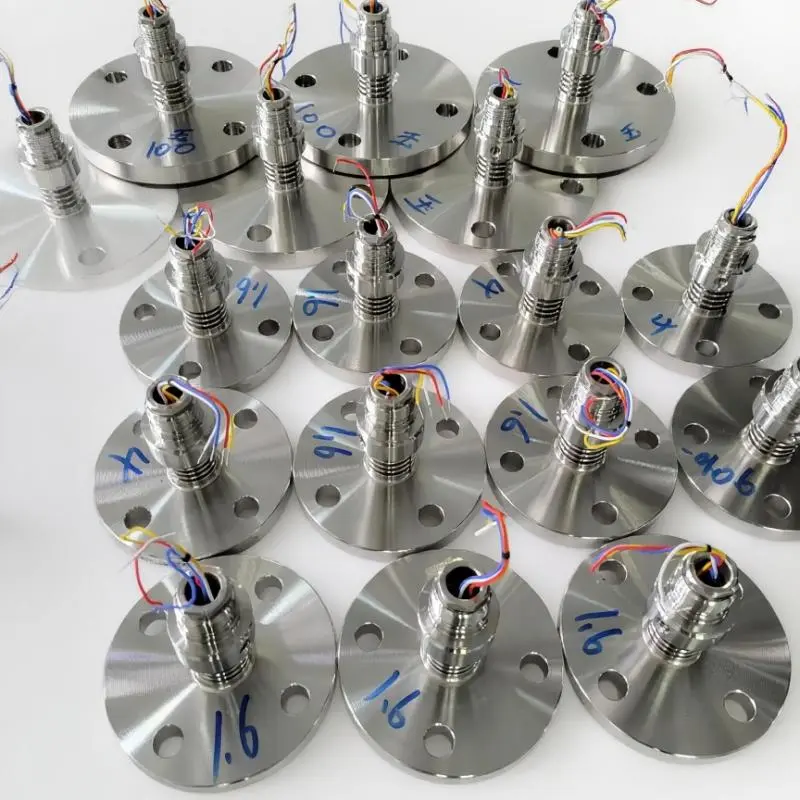

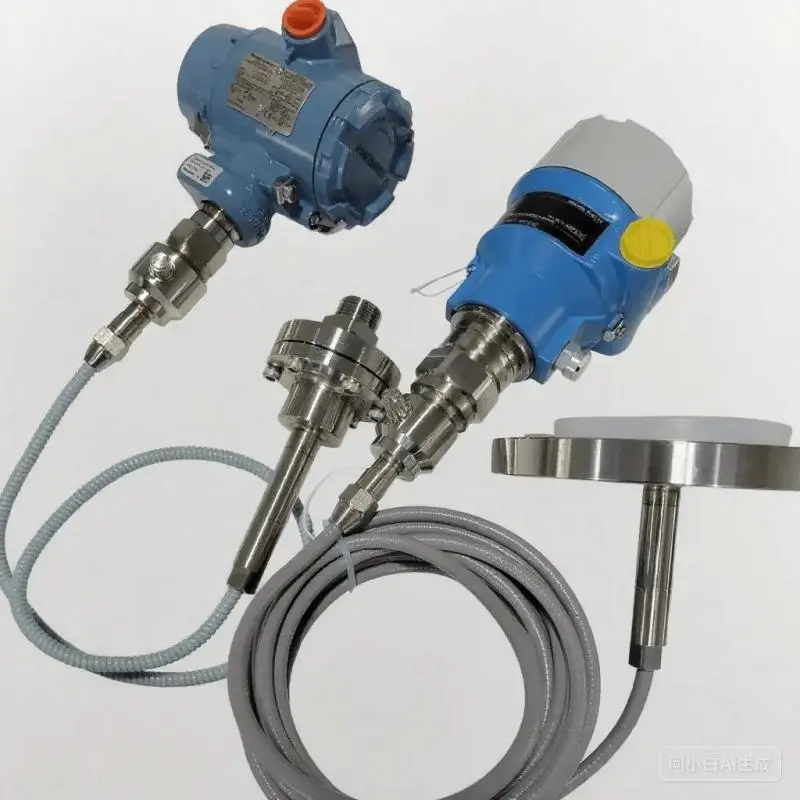

These photos showcase a selection of diaphragm seal customized projects and diaphragm seal pressure transmitter assemblies completed in 2025.
Each unit is manufactured based on specific process conditions, including flange standards, diaphragm materials, filling fluids, capillary configurations, and calibration requirements.

From single flange-mounted diaphragm seals to remote diaphragm seal systems with capillary tubing, all products are assembled, oil-filled, temperature compensated, and pressure calibrated to ensure reliable performance in real industrial applications.

This growing portfolio of completed orders reflects our proven capability in custom diaphragm seal manufacturing, fast response to customer requirements, and consistent delivery quality for global process industries.

Start Your Customization Project Today

Start Your Diaphragm Seal Pressure & Level Transmitter Customization

Tell us your process conditions, pressure range, temperature, and flange requirements. Our engineers will review your application and provide a technically matched diaphragm seal solution.
