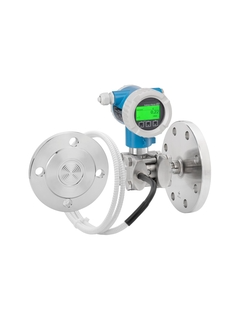

Deltabar PMD78B – differential pressure transmitter

Deltabar PMD78B – differential pressure transmitter – Minimizes ambient and process temperature effects on your measurement thanks to the TempC membrane

Specifications:

Measuring Principle	Differential pressure
Characteristic	Specialist with one or two capillaries for accurate differential pressure measurement. Intuitive and clear wizards for commissioning, proof tests and verification.
Supply Voltage	Ex d, Ex e, non-Ex: 10.5...35V DC; Ex i: 10.5...30V DC
Reference Accuracy	Standard: up to 0.1 %
Long Term Stability	0.025 % of URL/ year; 0.05 % of URL/ 5 years; 0.10 % of URL/ 10 years
Process Temperature	-70°C...+400°C (-94°F...+752°F)
Ambient Temperature	-40°C...+85°C (-40°F...+185°F)
Measuring Cell	100 mbar...40 bar (1.5 psi...600 psi)
Smallest Calibratable Span	5 mbar (0.075 psi)
Vacuum Resistance	50 mbar (0.73 psi)
Max. Turn Down	100:1
Max. Overpressure Limit	240 bar (3600 psi)
Process Connection	Thread: MNPT1/2, G1/2; Flange: NPS 2"...4", DN50...100
Material Process Membrane	316L, AlloyC, Tantal, Monel, PTFE, Gold
Material Gasket	PTFE, FKM, EPDM, FFKM
Fill Fluid	Silicone oil, inert oil, vegetable oil, low- / high temperature oil
Material Housing	Aluminium, 316L
Communication	4...20 mA HART; PROFIBUS PA; PROFINET with Ethernet-APL; Bluetooth® wireless technology and app (optional)
Certificates / Approvals	ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex
Safety Approvals	SIL
Design Approvals	EN10204-3.1, NACE MR0175, NACE MR0103
Specialities	Heartbeat Technology, Bluetooth® Operation and maintenance SmartBlue App, LED Module, RFID TAG for easy identification, Plug and play functionalities, HistoROM

Field of application

This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.

Pressure measuring ranges up to 40 bar (600 psi)
Process temperatures up to 400 °C (752 °F) with diaphragm seal
Static pressure: up to 160 bar (2400 psi)
Accuracy: up to +/- 0.075%

Benefits

Wireless control of the device in hard to reach areas with the SmartBlue App and a Bluetooth® connection
Reduce systematic failures – error free SIL commissioning and instrument guided proof testing
With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability.
Simple indication of device status – display changes from green to red when diagnostic messages occur
