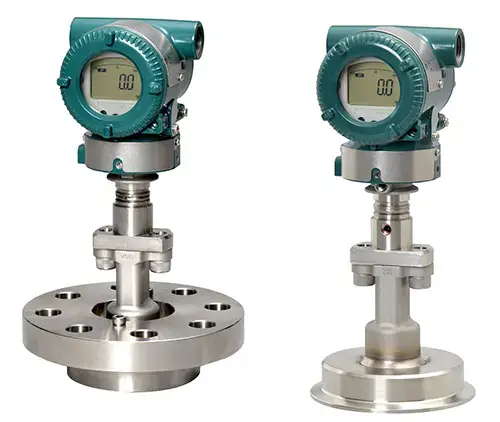

EJXC50A, EJAC50E Gauge Pressure Direct Mounted Seal.
Direct Mounted Diaphragm Seal System consists of gauge pressure transmitter with single direct mount diaphragm seal. Suitable for various kinds of pressure measurement.
| Measurement Span | Range | ||
| A | 8 to 200 kPa | -100 to 200 kPa | |
| B | 0.04 to 2 MPa | -0.1 to 2 MPa | |
| C | Flush type | 0.2 to 10 MPa | -0.1 to 10 MPa |
| Extended type | 0.2 to 7 MPa | -0.1 to 7 MPa | |
| Measurement Span | Range | ||
| A | 10 to 200 kPa | -100 to 200 kPa | |
| B | 0.1 to 2 MPa | -0.1 to 2 MPa | |
| C | Flush type | 0.5 to 10 MPa | -0.1 to 10 MPa |
| Extended type | 0.5 to 7 MPa | -0.1 to 7 MPa | |
| Item | Specifications | ||
| Applicable Products (transmitter) | Gauge Pressure Transmitter: EJX530A, EJA530E | ||
| Process connection size | Flush Flanged Seal 1 1/2-inch (40 mm), 2-inch (50 mm), 3-inch (80 mm) Extended Flanged Seal 3-inch (80 mm), 4-inch (100 mm) | ||
| Date | Remarks | ||
| 2024/12 | Important Notice for Safe Use of Products |
EJXC50A, EJAC50E
Direct Mounted Diaphragm Seal System consists of gauge pressure transmitter with single direct mount diaphragm seal. Suitable for various kinds of pressure measurement.
