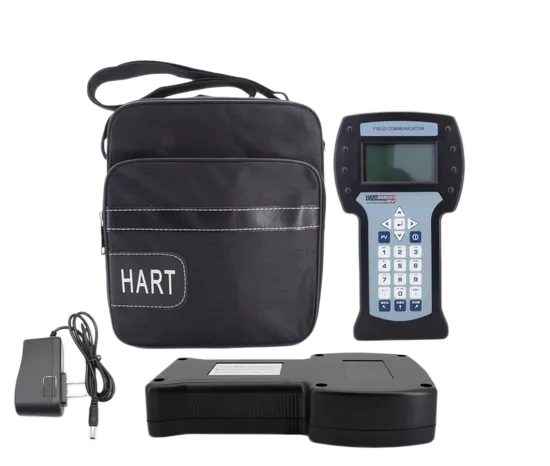

HART Handheld Communicator

HART Handheld Communicator Product Overview

The HART Handheld Communicator is used for communication with intelligent field instruments that support the HART protocol. It is commonly used during installation, commissioning, calibration, troubleshooting, and routine maintenance of smart transmitters.

For pressure measurement applications, the HART handheld communicator is especially useful for setting and checking parameters of:

• Smart pressure transmitters
• Differential pressure transmitters
• Flange pressure transmitters
• Diaphragm seal pressure transmitters
• Differential pressure level transmitters
• Temperature transmitters
• Other HART-enabled field instruments

With this device, engineers and technicians can communicate with the transmitter directly in the field without removing the instrument from the process line.

Product Description

A HART handheld communicator is a portable device used to access HART field instruments through the 4–20 mA signal loop. In many pressure transmitter systems, the transmitter outputs a standard 4–20 mA analog signal while also carrying digital communication through the HART protocol.

The communicator can be connected to the transmitter loop using test leads or crocodile clips. After connection, the technician can read the device information, check real-time process variables, modify configuration parameters, and perform maintenance functions.

In pressure transmitter applications, the HART communicator is often used to set or check:

• measuring range
• lower range value and upper range value
• engineering unit
• damping time
• output mode
• zero point
• sensor trim
• loop test
• device tag
• alarm status
• diagnostic information

This makes it an important accessory for smart pressure transmitter commissioning and maintenance.

Common Names

This product may be called by different names in industrial projects:

Main Functions

Transmitter Configuration

The communicator can be used to configure smart transmitters, including range setting, unit selection, damping adjustment, output setting, and device tag editing.

On-Site Calibration Support

It supports zero adjustment, sensor trimming, loop testing, and output checking for HART pressure transmitters and differential pressure transmitters.

Device Diagnostics

Technicians can read device status, diagnostic messages, alarm information, and process variables to identify installation or instrument problems.

Process Variable Reading

The communicator can display real-time values such as pressure, differential pressure, temperature, current output, percentage output, and other variables depending on the connected instrument.

HART Loop Communication

It communicates through the HART signal carried on the 4–20 mA loop, allowing configuration without interrupting normal analog signal transmission in many applications.

Key Features

Designed for HART Instruments

Suitable for communication with field devices that support the HART protocol, including smart pressure transmitters and temperature transmitters.

Portable Field Operation

The handheld design allows technicians to carry it to the site for commissioning, maintenance, and troubleshooting.

Supports Smart Pressure Transmitters

Commonly used with pressure transmitters and differential pressure transmitters for range configuration, zero trimming, and diagnostic checking.

Useful for Commissioning and Maintenance

Helps technicians complete transmitter setup after installation and verify instrument status during operation.

Direct Field Connection

Can be connected to the transmitter loop using test leads, making it practical for field service work.

Suitable for Industrial Automation Systems

Used in process plants where smart transmitters are connected to PLC, DCS, or other control systems through 4–20 mA + HART signals.

Technical Specifications

Applications

Pressure Transmitter Configuration

Used to set the measuring range, engineering unit, damping time, device tag, and output parameters of smart pressure transmitters.

Differential Pressure Transmitter Maintenance

Suitable for DP transmitters used in flow measurement, level measurement, filter differential pressure monitoring, and process pressure difference measurement.

Differential Pressure Level Transmitter Setup

Used with smart DP level transmitters to check range settings, zero point, output value, and diagnostic status during tank or vessel level measurement.

Temperature Transmitter Communication

Can be used to configure HART-enabled temperature transmitters in temperature measurement systems.

Instrument Commissioning

Used after installation to verify transmitter communication, output signal, process variable, range setting, and loop response.

Plant Maintenance and Troubleshooting

Helps maintenance teams check instrument status, locate abnormal transmitter output, and confirm whether the issue comes from configuration, sensor condition, wiring, or the process itself.

Automation System Support

Useful in PLC and DCS systems where field transmitters use 4–20 mA + HART output for process measurement and control.

Advantages

• Portable tool for HART field instruments.
• Suitable for pressure transmitters and differential pressure transmitters.
• Supports configuration, calibration assistance, loop testing, and diagnostics.
• Allows technicians to read transmitter parameters directly in the field.
• Helps reduce commissioning and troubleshooting time.
• Useful for smart transmitters with 4–20 mA + HART output.
• Can be used in chemical plants, power plants, water treatment, oil and gas, and industrial automation systems.
• Supports better maintenance of pressure, level, flow, and temperature measurement loops.

Selection Notes

When selecting a HART handheld communicator, confirm the following details:

1. Protocol compatibility
   Confirm that the field instrument supports the HART protocol.
2. Instrument type
   Confirm whether it will be used for pressure transmitters, differential pressure transmitters, temperature transmitters, flowmeters, or other HART devices.
3. Required functions
   Confirm whether the site requires basic configuration, zero trim, loop test, device diagnostics, or full device parameter access.
4. Transmitter output
   Most smart pressure transmitters use 4–20 mA + HART output. Confirm the loop wiring and load resistance before communication.
5. Site use environment
   For hazardous areas, check whether the communicator itself needs explosion-proof or intrinsically safe certification.
6. Accessories
   Confirm whether test leads, clips, charger, battery, carrying bag, and communication cables are included.
7. Device library compatibility
   For some advanced instruments, confirm whether the communicator supports the required device descriptions or menus.
