Pressure Instrument Cooling Element Product Overview

The Pressure Instrument Cooling Element is used to protect pressure measuring instruments from high process temperature. It is installed between the process pipeline and the instrument, creating a heat dissipation section before the medium reaches the pressure gauge or pressure transmitter.

In pressure measurement systems, excessive process temperature may damage the pressure sensor, bourdon tube, diaphragm, seal ring, filling oil, or electronic module. A cooling element helps reduce this risk by increasing the heat dissipation area and lowering the temperature transferred to the instrument.

This product is commonly used with:

• Pressure gauges
• Pressure transmitters
• Pressure switches
• Gauge valves
• Needle valves
• Instrument manifolds

It is suitable for steam lines, hot water pipelines, thermal oil systems, boilers, power plants, chemical processes, HVAC heating systems, and other high-temperature pressure measurement points.

Product Description

A pressure instrument cooling element is usually made from stainless steel and designed with fins, coils, perforated protection tubes, or extended heat dissipation structures. These structures increase the contact area with ambient air, allowing process heat to dissipate before reaching the pressure instrument.

In actual applications, this product may be called by different names, such as pressure gauge cooling element, pressure transmitter cooling element, cooling adapter for pressure gauge, cooling adapter for pressure transmitter, heat dissipating adapter, heat sink adapter, pressure gauge radiator, or instrument cooling coil.

Compared with a standard straight connector, a cooling element provides better protection for instruments used on hot media. Compared with a diaphragm seal with capillary, it is usually a simpler and more economical solution when the medium is compatible with direct pressure connection and does not require chemical isolation.

Typical installation:

Process Connection → Cooling Element → Gauge Valve / Needle Valve → Pressure Gauge or Pressure Transmitter

For safe operation and maintenance, a gauge valve or needle valve is often installed between the cooling element and the instrument. This allows the instrument to be isolated, calibrated, replaced, or vented more conveniently.

Main Functions

Temperature Reduction

The main function of the cooling element is to reduce the heat transferred from the process medium to the pressure instrument.

This is important for pressure transmitters, because high temperature may affect or damage the sensor chip, diaphragm, O-rings, filling oil, electronics, and display module.

Protection for Pressure Gauges

For pressure gauges, high temperature may shorten the service life of the bourdon tube, movement mechanism, pointer assembly, and sealing parts. A cooling element helps reduce direct thermal impact.

Protection for Pressure Transmitters

For pressure transmitters, especially compact pressure transmitters and threaded pressure transmitters, the cooling element helps keep the process connection temperature within the allowable range of the transmitter.

Improved Measurement Stability

Lower instrument temperature can help reduce temperature drift and improve long-term pressure measurement stability.

Buffer Against Minor Pressure Impact

Some cooling element structures, especially coil or extended designs, can provide a limited buffering effect against minor pressure shock or pulsation. For strong pulsation, a dedicated snubber or pulsation dampener should still be considered.

Common Names

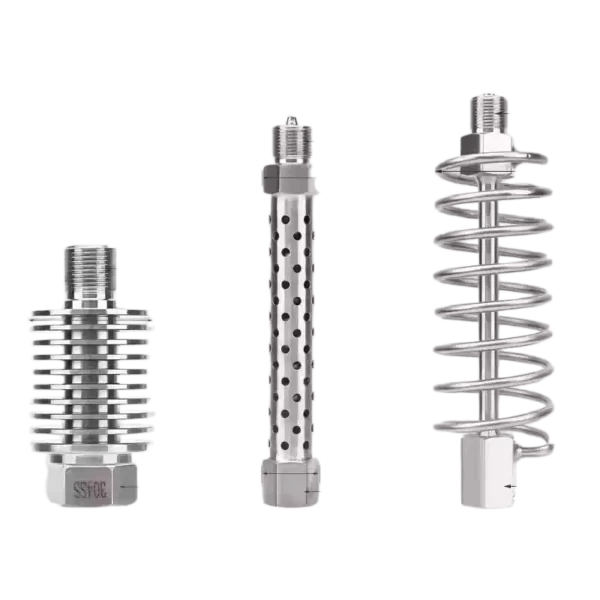

Common Types

Finned Cooling Element

The finned type uses multiple metal fins to increase heat dissipation area. It is compact and commonly used with pressure gauges and pressure transmitters in hot water, steam, and thermal oil systems.

Coil Cooling Element

The coil type provides a longer cooling path in a compact structure. It is suitable for high-temperature media where more cooling length is required.

Perforated Protection Type

The perforated sleeve structure provides mechanical protection while allowing heat dissipation through the holes. It is often used in harsh industrial environments.

Customized Cooling Adapter

Custom designs can be supplied according to connection size, temperature requirement, material, length, pressure rating, and installation space.

Technical Specifications

Applications

Pressure Transmitter Installation

Used with pressure transmitters in steam, hot water, thermal oil, and high-temperature process lines. The cooling element helps reduce the temperature reaching the transmitter and protects the sensing element from heat damage.

Typical arrangement:

Hot Process Line → Cooling Element → Needle Valve → Pressure Transmitter

This is commonly used when a standard threaded pressure transmitter is selected for a high-temperature pressure measurement point.

Pressure Gauge Protection

Installed before pressure gauges to reduce the temperature transferred to the gauge body and bourdon tube. It is commonly used in boiler rooms, steam headers, and heating systems.

Pressure Switch Protection

Used before pressure switches to reduce thermal stress and protect the switching mechanism or sensing diaphragm.

Steam and Boiler Systems

Suitable for boiler pressure monitoring, steam distribution lines, steam headers, condensate systems, and heat exchanger pressure measurement.

Thermal Oil and Hot Water Systems

Used in thermal oil pipelines, hot water circulation systems, heating loops, and other high-temperature liquid pressure measurement points.

Chemical and Power Plant Applications

Applied in chemical processing, power generation, industrial utilities, and process systems where high-temperature media must be measured safely.

Advantages

• Reduces process temperature transferred to the instrument.
• Protects pressure gauges, pressure transmitters, and pressure switches.
• Helps reduce transmitter temperature drift caused by excessive process heat.
• Improves instrument service life in high-temperature applications.
• Available in finned, coil, perforated, and customized structures.
• Stainless steel material provides corrosion resistance and mechanical strength.
• Can be used with needle valves, gauge valves, and instrument manifolds.
• Suitable for steam, hot water, thermal oil, boiler, chemical, and power plant applications.
• Simple and economical solution for many high-temperature pressure measurement points.

Selection Notes

When selecting a pressure instrument cooling element, confirm the following details:

1. Instrument type
   Confirm whether it will be used with a pressure gauge, pressure transmitter, or pressure switch.
2. Process temperature
   Check whether the cooling element can reduce the temperature to within the allowable range of the instrument.
3. Process pressure
   The pressure rating of the cooling element must match the maximum working pressure of the system.
4. Medium compatibility
   Confirm whether the process medium is steam, hot water, thermal oil, gas, chemical liquid, or another medium. Select the material accordingly.
5. Connection type and size
   Common options include 1/2″ NPT, 1/4″ NPT, G1/2, M20×1.5, or customized threads.
6. Installation space
   Select finned, coil, perforated, or customized structures according to available space and instrument orientation.
7. Need for isolation valve
   A needle valve or gauge valve is usually recommended for safe isolation, calibration, and maintenance.
8. Whether chemical isolation is required
   If the medium is corrosive, viscous, crystallizing, or easy to block, a diaphragm seal pressure transmitter may be more suitable than a direct cooling element connection.
