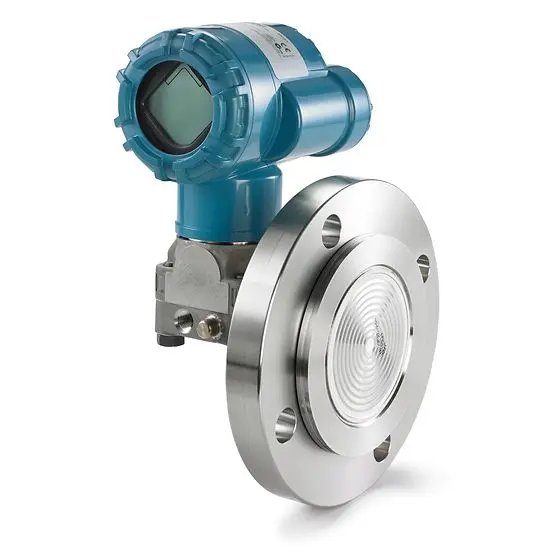

Rosemount 2051L Wireless Level Transmitter

Rosemount 2051L Wireless Level Transmitter provides level measurements with a variety of process connections, materials and WirelessHART®technology. The SmartPower™ module of this wireless device provides up to 10-year, maintenance-free operation as well as field replacement. For improved performance over traditional installations, this transmitter has Tuned-System™ assembly and direct mounting options.

Specifications:

Max. Operating Pressure	Up to 300 psi (20,68 bar)
Process Temperature Range	Based on fill fluid - Maximum 401°F (205°C), Minimum -157°F (-105°C)
Communication Protocol	WirelessHART®
Seal System Type	Direct Mount, Tuned-System
Transmitter Connection	Welded-Repairable
Process Connection	Flanged: ANSI/ASME, EN/DIN, JIS
Process Wetted Material	316L SST, Alloy C-276, Tantalum
Diagnostics	Basic Diagnostics
Certifications/Approvals	NACE庐, hazardous location, see full specs for complete list of certifications
Update Rate	1 sec. to 60 min., user selectable
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Internal antenna (225 m)

Features

WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
Tuned-System Level assembly and direct mounting produce optimal performance for level applications
Optimized seal system construction ensures a quality measurement in harsh process conditions
SmartPower module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
Easy installation enables quick instrumentation of measurement points without the cost of wiring
