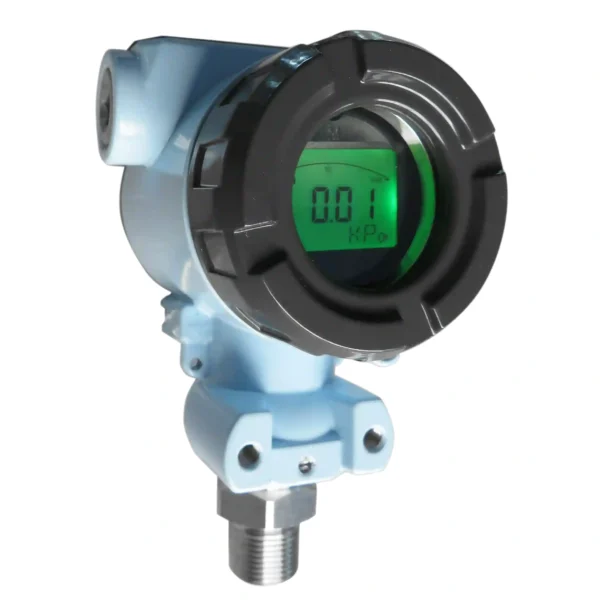

TK208 Diffusion Silicon Pressure Transmitter

Anhui Tiankang TK208 Diffusion Silicon Pressure Transmitter Overview

The Anhui Tiankang TK208 diffusion silicon pressure transmitter is a practical pressure measurement instrument for general industrial applications. Compared with a compact pressure sensor, the TK208 uses a more complete industrial transmitter structure, including a field housing, display window, cable entry, and stronger mechanical protection.

It is suitable for applications where users need:

• local pressure display
• standard 4–20 mA output
• field-mounted industrial housing
• convenient wiring and installation
• better environmental protection than small pressure sensors
• direct threaded process connection

The TK208 is commonly used for pressure measurement of water, air, oil, gas, steam, and compatible industrial liquids. For corrosive, viscous, crystallizing, or easy-to-block media, a diaphragm seal pressure transmitter should be considered instead.

4–20 mA Diffusion Silicon Pressure Transmitter Output

The TK208 pressure transmitter provides a standard industrial output signal.

The 4–20 mA output is widely used in industrial automation because it is stable, easy to transmit over long distances, and compatible with most control systems.

Key Features of Anhui Tiankang TK208 Industrial Pressure Transmitter

Isolated Diffusion Silicon Sensor

The TK208 uses a diffusion silicon sensing element for pressure measurement. This sensor structure is widely used in industrial pressure transmitters because it provides good sensitivity and stable signal conversion.

Industrial Field Housing

The TK208 uses a transmitter-style housing rather than a simple compact sensor body. This gives it a stronger field appearance and makes it suitable for installation in industrial environments.

Local LCD Display Option

The transmitter can be equipped with a local display, allowing users to read pressure directly on site. This is useful for equipment inspection, commissioning, and maintenance.

Direct Threaded Installation

The transmitter can be installed directly on pipelines, tanks, pumps, compressors, and process equipment through a threaded process connection.

Good Cost Performance

Compared with high-end monocrystalline silicon or capacitive pressure transmitters, the TK208 diffusion silicon transmitter is usually more economical while still meeting many standard industrial pressure measurement requirements.

Good Temperature Characteristics

The TK208 series is designed for general industrial temperature conditions. For high-temperature steam or hot liquid service, a syphon, cooling element, or diaphragm seal should be considered.

Suitable for General Industrial Pressure Measurement

This product is suitable for common pressure measurement points where the medium is relatively clean and compatible with the wetted material.

Technical Specifications for TK208 Pressure Transmitter Selection

Industrial Applications of Anhui Tiankang TK208 Pressure Transmitter

Pipeline Pressure Measurement

Used for pressure monitoring in water pipelines, gas pipelines, oil pipelines, and general process lines.

Pump and Compressor Pressure Monitoring

Suitable for pump outlet pressure, compressor discharge pressure, compressed air systems, and equipment protection loops.

Water Treatment and Utility Systems

Used in pumping stations, filtration systems, water supply lines, wastewater treatment, and industrial utility pressure monitoring.

Hydraulic and Pneumatic Systems

Suitable for hydraulic equipment, pneumatic systems, compressed air networks, and machinery pressure monitoring.

General Industrial Process Measurement

Can be used in chemical, power, metallurgy, building automation, environmental protection, and equipment manufacturing industries.

How to Select an Anhui Tiankang TK208 Pressure Transmitter

When selecting a TK208 diffusion silicon pressure transmitter, confirm the following details:

1. Measuring range
   Confirm normal pressure, maximum pressure, and calibrated range.
2. Pressure type
   Confirm whether the application requires gauge pressure or absolute pressure.
3. Process medium
   Confirm whether the medium is water, air, oil, gas, steam, or compatible liquid.
4. Process temperature
   For steam or high-temperature liquid, confirm whether cooling protection is required.
5. Process connection
   Confirm thread size, sealing method, and installation direction.
6. Output signal
   Confirm whether standard 4–20 mA output is suitable.
7. Display requirement
   Confirm whether local LCD display is required.
8. Electrical connection
   Confirm cable entry, cable gland, and site wiring requirement.
9. Material compatibility
   Confirm whether the wetted material is suitable for the medium.
10. Explosion-proof requirement
    Confirm whether ordinary industrial type is sufficient or whether hazardous area certification is required.

TK208 Pressure Transmitter vs Compact Pressure Sensor

For industrial field pressure measurement, the TK208 is usually more suitable. For compact equipment and machine integration, the TK316 or compact pressure sensor type may be more practical.

Anhui Tiankang TK208 Pressure Transmitter Supplier Support from SIYelectric

SIYelectric supplies Anhui Tiankang TK208 diffusion silicon pressure transmitters for industrial projects, replacement orders, and process instrumentation procurement. We can help confirm pressure range, output signal, process connection, display requirement, electrical interface, and accessory selection according to your operating conditions.

For accurate quotation, please provide:

• measuring range
• process medium
• process temperature and pressure
• process connection thread
• output signal requirement
• display requirement
• electrical connection requirement
• installation environment
• quantity and documentation requirement

Available documents may include technical datasheet, certificate of conformity, inspection report, packing list, and commercial invoice, depending on order requirements.
