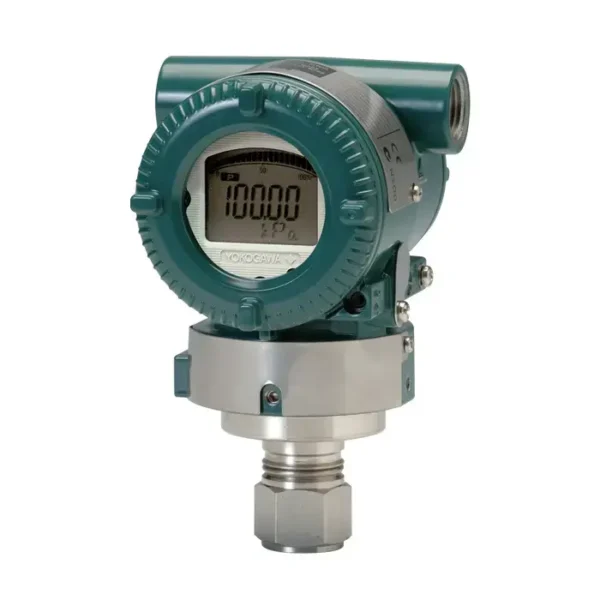

EJA530E In-Line Mount Gauge Pressure Transmitter

Accurately: ±0.055% Accuracy
Reliably: ±0.1% Stability per 10 years
Quickly: 90 msec Response Time

EJA530E In-Line Mount Gauge Pressure Transmitter.

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA530E is our in-line mount gauge pressure transmitter in the series.

Specifications:

Measurement Types
Primary Variable	Gauge Pressure
Reference Accuracy
Primary Variable	±0.055% of Span
±0.04% of Span (/HAC option)
Stability (All Normal Operating Conditions)
Primary Variable	±0.1% of URL per 10 years
Response Time
Primary Variable	90 msec
Rangeability
Primary Variable	A capsule 20:1
B, C and D capsules: 100:1
Burst Pressure (Absolute)
EJA510E	A, B, and C Capsules: 4,350 psi (30 MPa)
D Capsule: 19,100 psi (132 MPa)
Specification Conformance
EJX-A Series	±3σ
