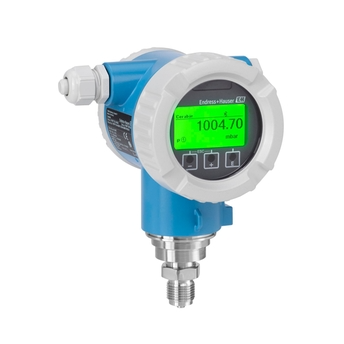

PMP71B – pressure transmitter

PMP71B smart pressure transmitter – its health can be verified without process interruption

Specifications:

Measuring principle	Absolute and gauge pressure
Characteristic	Pressure transmitter with metallic process diaphragm. Available with diaphragm seals. Device health verification without process interruptions. Intuitive and clear wizards for commissioning, proof tests and verification.
Supply voltage	4...20 mA HART Ex d, Ex e, non-Ex: 10.5...35V DC : Ex i: 10.5...30V DC
Reference Accuracy	Standard: up to 0.05 % Platinum: up to 0.025 %
Long term stability	0.05 % of URL/ year 0.07 % of URL/ 5 years 0.10 % of URL/ 10 years
Process temperature	Standard: -40°C…+125°C (-40°F…+257°F) Diaphragm seal: -70°C...+400°C (-94°F...+752°F)
Ambient temperature	-60°C...+80°C (-76°F...+185°F)
Measuring cell	400 mbar...700 bar (6 psi...10,500 psi)
Smallest calibratable span	5 mbar (0.075 psi)
Vacuum resistance	5 mbar (0.725 psi)
Max. Turn down	100:1
Max. overpressure limit	1,050 bar (15,750 psi)
Process connection	Thread: G1/2...G2, R1/2, MNPT3/4...MNPT2, FNPT1/2, R1/2 Flange: DN25...DN100, NPS 1"...4" Pancake: 2"...4", DN50...DN100
Material process membrane	316L, AlloyC, Tantal, Monel, PTFE, Gold
Material gasket	PTFE
Fill fluid	Silicone oil, Inert oil, Vegetable oil, High/ low temperature oil
Material housing	Aluminium, 316L
Communication	4...20 mA HART PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional)
Certificates / Approvals	ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex
Safety approvals	SIL
Design approvals	EN10204-3.1, NACE MR0103, NACE MR0175
Marine approvals	Marine approvals
Drinking water approvals	NSF
Specialities	Heartbeat Technology, Bluetooth® Operation and maintenance SmartBlue App, LED Module, RFID TAG for easy identification, Plug and play functionalities, HistoROM

Field of application

This transmitter belongs to the new Cerabar generation. The transmitter is robust and can be remotely controlled via app on a mobile device using a secure Bluetooth connection.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

Pressure measuring range: up to 700 bar (10500 psi)
Process temperatures up to 400°C (752 °F) with diaphragm seal
Accuracy: up to +/- 0.025%

Benefits

With Heartbeat Technology you are able to verify the health of the device while the process is running.
Simple indication of device status – display changes from green to red when diagnostic messages occur
Reduce systematic failures – error free SIL commissioning and instrument guided proof testing
Wireless control of the device in the process area with the SmartBlue App
