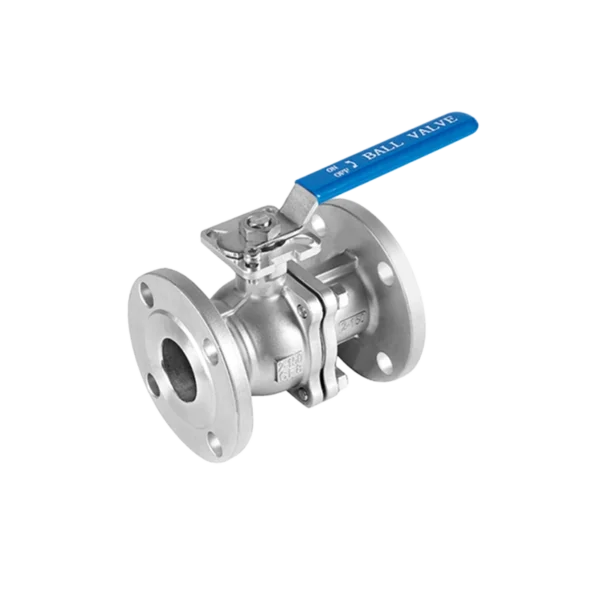

2 PC Flanged Ball Valve

2 PC Flanged Ball Valve

Product Overview

The SIYelectric 2 Piece Flanged Ball Valve is a quarter-turn industrial shut-off valve designed for reliable flow control, pipeline isolation, and maintenance-friendly operation.

Unlike a one-piece ball valve, a 2 piece flanged ball valve consists of two main body sections assembled together. This split body design makes it easier to access internal components such as the ball, seats, and seals when inspection, cleaning, or maintenance is required.

The valve uses a precision-machined ball with a central bore to control flow. When the bore is aligned with the pipeline, the medium passes through the valve. When the handle is rotated 90 degrees, the ball blocks the flow path and shuts off the line.

This valve is commonly used in oil and gas, chemical processing, water treatment, HVAC, industrial utilities, manufacturing plants, and process piping systems where reliable shut-off and easier maintenance are important.

Product Description

The 2 PC flanged ball valve combines a durable split body structure with flanged end connections for convenient pipeline installation and removal. The flanged design makes it suitable for industrial systems where valves may need to be inspected, serviced, or replaced during plant maintenance.

With a full port design, the valve provides a flow passage close to the pipeline bore, helping reduce pressure drop and maintain flow capacity. This is especially useful for water, oil, gas, chemical, and utility pipelines where stable flow performance is required.

SIYelectric 2 piece flanged ball valves are available in CF8 / SS304, CF8M / SS316, and WCB materials. They can be supplied according to common international flange standards such as ASME B16.5, AS2129 Table E, BS EN 1092-1, and DIN 2501, making them suitable for different project specifications and regional piping standards.

Key Features

Two-Piece Split Body Design

The two-piece body structure allows better access to internal valve parts during maintenance. It is more service-friendly than a compact one-piece design.

Flanged End Connection

Flanged ends provide secure installation in industrial piping systems and allow easier removal compared with welded connections.

Full Port Structure

The full port design helps reduce pressure loss and supports higher flow capacity through the valve.

Quarter-Turn Operation

The valve opens and closes with a simple 90-degree handle movement, providing fast and clear on/off control.

Multiple Material Options

Available materials include CF8 / SS304, CF8M / SS316, and WCB, allowing selection based on medium, corrosion requirement, pressure, and project budget.

Multiple Flange Standards

Available flange standards include ASME B16.5, AS2129 Table E, BS EN 1092-1, and DIN 2501, suitable for international industrial projects.

Automation Option

An optional ISO 5211 mounting pad allows the valve to be connected with pneumatic or electric actuators for automated control.

Fire Safe Option

A fire-safe design option can be selected for applications where fire safety requirements are specified by the project or industry standard.

Technical Specifications

Applications

Oil and Gas Industry

Used in oil, gas, fuel, utility, and auxiliary process pipelines where durable shut-off performance and easy maintenance are required.

Chemical Processing

Suitable for compatible chemicals, solvents, additives, and process fluids. For corrosive media, CF8M / SS316 is usually preferred after confirming chemical compatibility.

Water Treatment Systems

Applied in filtration systems, pumping stations, water distribution lines, treatment units, and industrial water systems.

HVAC and Building Services

Used in chilled water, hot water, cooling water, and general building service pipelines where flanged shut-off valves are required.

Industrial Utility Pipelines

Suitable for compressed air, non-corrosive gas, water, oil, steam-related auxiliary lines, and general plant utility systems.

Automated Process Control

With the ISO 5211 mounting pad, the valve can be equipped with pneumatic or electric actuators for remote operation or automatic control.

Advantages

• Two-piece split body allows easier internal inspection and maintenance.
• Flanged connection supports secure installation and convenient removal.
• Full port design helps reduce pressure drop and maintain flow capacity.
• Quarter-turn operation provides fast and simple shut-off control.
• SS304, SS316, and WCB material options meet different industrial requirements.
• Multiple flange standards support international project compatibility.
• Lockable handle option helps prevent accidental operation.
• ISO 5211 mounting pad option supports pneumatic or electric actuator installation.
• Fire-safe option is available for applications with higher safety requirements.
• API 598 and EN 12266-1 testing helps verify sealing and pressure performance.

Selection Notes

When selecting a 2 piece flanged ball valve, confirm the following details:

1. Valve size
   Confirm the nominal size required by the pipeline, such as DN15, DN25, DN50, DN80, or DN100.
2. Flange standard
   Confirm whether the project requires ASME B16.5, DIN 2501, BS EN 1092-1, or AS2129 Table E.
3. Body material
   • WCB: common for general industrial service and non-corrosive media.
   • SS304 / CF8: suitable for water, air, oil, and mild media.
   • SS316 / CF8M: better for chemical, coastal, or more corrosive environments.
4. Pressure rating
   Confirm whether the system requires 150 LBS, 300 LBS, PN16, or another pressure class.
5. Manual or automated control
   Select ISO 5211 mounting pad if actuator installation is needed.
6. Fire-safe requirement
   For oil, gas, chemical, or safety-critical applications, confirm whether a fire-safe design is required.
